GYXFTW Aramid Yarn FRP Fiber Optic Armoured Central Tube Fiber Cable
1. Specification:

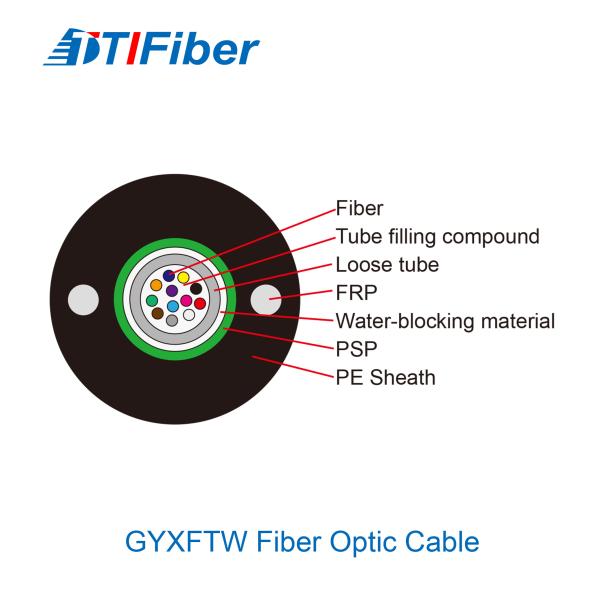

The optical fiber is 250µm, the loose tube is made of high
modulus plastic, which is filled with waterproof compound. In the center of the cable core is a FRP strength
member,The loose tube (and the filling rope) is twisted around the central reinforcement core to form a compact
and round cable core, and the gap in the cable core is filled with a water blocking filler. The outer of the cable is
a polyethylene (PE) inner sheath,then twisted high tensile strength aramid, normally use high-density
polyethylene (HDPE) outer sheath or electric tracking (AT) outer sheath.
2. Feature:
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber.
4. Crush resistance and flexibility.
5. PSP enhancing moisture-proof
6. Tow parallel steel wires ensure tensile strength
7. Small diameter, light weight and easily installation
| Fiber Type | G.652 | G655 | 50/125μm | 62.5/125μm |
| Attenuation(+20℃) | @850nm | | | ≤3.0 db/km | ≤3.3 db/km |
| @1300nm | | | ≤1.0 db/km | ≤1.0 db/km |
| @1310nm | ≤0.36 db/km | ≤0.40 db/km | | |
| @1550nm | ≤0.22 db/km | ≤0.23 db/km | | |
| Bandwidth | @850nm | | | ≥500MHz.km | ≥200MHz.km |
| @1300nm | | | ≥500MHz.km | ≥500MHz.km |
| Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength | ≤1260 nm | ≤1450 nm | | |
3.Application:
1. Long-distance communication.
2. It's suitable for duct, especially for the places with high requirement for moisture-proof.
3. Installation: Duct, direct-buried or non-self-supporting aeri
| | | |
| |
| | | | |
| | | |
| | | |
| | | |
| | | |
| | | |
Coating/cladding concentricity error | | |
| | | |
| | | | |
| | | |
Macro-bend loss (1 turn, 10mm radius) | | | |
| | | |
| | | |
4. Product Picture:
5. FAQ:
1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal.
